HKS HIPERMAX R GR86/BRZ ZN8/ZD8
Part Number: 80310-AT006

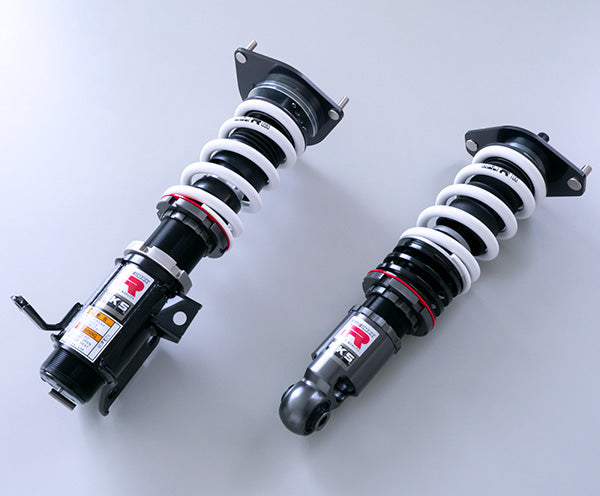

HKS Hipermax R Coilovers for the GR86/BRZ ZN8.
If you would like to run hard on the circuit, and set quick lap times out of the box, without adjusting preload or ride height, this is the damper setup for you! With a spring rate of 9k 10k, the damping won't be too hard for the daily driver. The stiffer spring rates are well worth the feeling, and stability, for the winding roads like Angeles Crest Highway on a Friday Goodvibes Breakfast Club run.
Application
Engine | FA24 |
---|---|
Model Year | 21/10 - |
Remarks |
Specification
FRONT | REAR | |
---|---|---|
Damping force adjustment | 30 steps | 30 steps |
Base valve | - | - |
Height adjustable lower bracket | 〇 | 〇 |
Upper mount | Spherical bearing | Spherical bearing |
Inverted/Normal type | Inverted | Normal |
Damper/Spring layout | Coilover | Coilover |
Spring rate change at factory | Impossible | Impossible |
Damping force adjustment with wire | - | - |
Helper spring (Spring rate N/mm) |
- | 〇 (19.8) |
Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
---|---|---|---|---|---|
FRONT | Ride height *1 | 636 | 638 | 664 ~ 619 | 664 ~ 619 |
Against stock | -28 | -26 | 0 ~ -45 | 0 ~ -45 | |
REAR | Ride height *1 | 636 | ← | 669 ~ 610 | 669 ~ 610 |
Against stock | -33 | ← | 0 ~ -59 | 0 ~ -59 |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring Rates
F | R | |
---|---|---|
Spring rate N/mm(kgf/mm) | 88 ( 9.0 ) | 98 ( 10.0 ) |
Free height (mm) | 150 | 150 |
Spring type | Straight | Straight |
Recommended range to change spring rate N/mm(kgf/mm) | ±10 ( 1 ) | -10(1)~+20(2) |
Specification of damper
F | R | |
---|---|---|
Damping force (Rebound/Damping)N* | 941 / 520 | 510 / 471 |
Default position of dial | 15 | 15 |
Remaining damper stroke (Rebound/Damping)mm | 30 / 47 | 47 / 52 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F | R | |||||||
---|---|---|---|---|---|---|---|---|
Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
Length of case (mm) |
219 | 221 | 247 | 204 | 235 | ← | 260 | 223 |
Spring Set length(mm) |
151 | ← | 151 | 153 | 204 | ← | 204 | 212 |
Length to ride hight adjuster (mm) |
39 | 41 | 67 | 22 | 20 | ← | 45 | 0 |
Lever ratio | 1 | 1.32 |
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
HKS Test vehicle information
F | R | ||
---|---|---|---|
Vehicle weight kg | - (700) | - (560) | |
Tire size (Air pressure) kPa | 215 / 45 - 17 ( 240 ) | 215 / 45 - 17 ( 240 ) | |
Wheel size | 7.5 JJ × 17 inset 48 | 7.5 JJ × 17 inset 48 | |
Alignment (Toe/Camber) |
Test data | out 1 mm / -3°40' | in 0 mm / -2°10' |
Standard value | in 0 ± 2 mm / 0°00' ± 0°30' | in 2 ± 2 mm / -1°10' ± 0°45' |
* Test data at HKS.
HKS Testing Findings
The kit was tested with ADVAN A052 Tires(235/40R18) at Fuji Speedway Racing Course.
Although the GR86 has quite good driving performance in stock condition, it still has a large amount of roll when equipped with high-grip tires, which makes it feel insufficient for track.
Respecting the original character of the GR86, we have created a setting that allows RWD-like movement and fun control of the car even with high-grip tires.
We checked the movement in track mode so that even track beginners can safely enjoy controlling vehicle.
This damper could satisfy both track beginners and advanced users who are aiming for breaking records. Even with one notch, you feel the change of movement strongly. With this kit, you can enjoy it from street driving to track.
By adopting the bump rubber that HKS has been researching for many years, it creates the stable feeling when cornering. It allows the tires to gain stable traction without suddenly losing grip.
For those aiming for breaking record, the front tires should be about 0.5-1.0mm toe out with full camber, and the rear tires should be about 0 to 0.5mm toe in. We recommend about 5 to 10 clicks of damping force adjustment at the front and rear.
For those who feel a lack of rear stability, we recommend installing adjustable aftermarket suspension arms to optimize rear camber.
