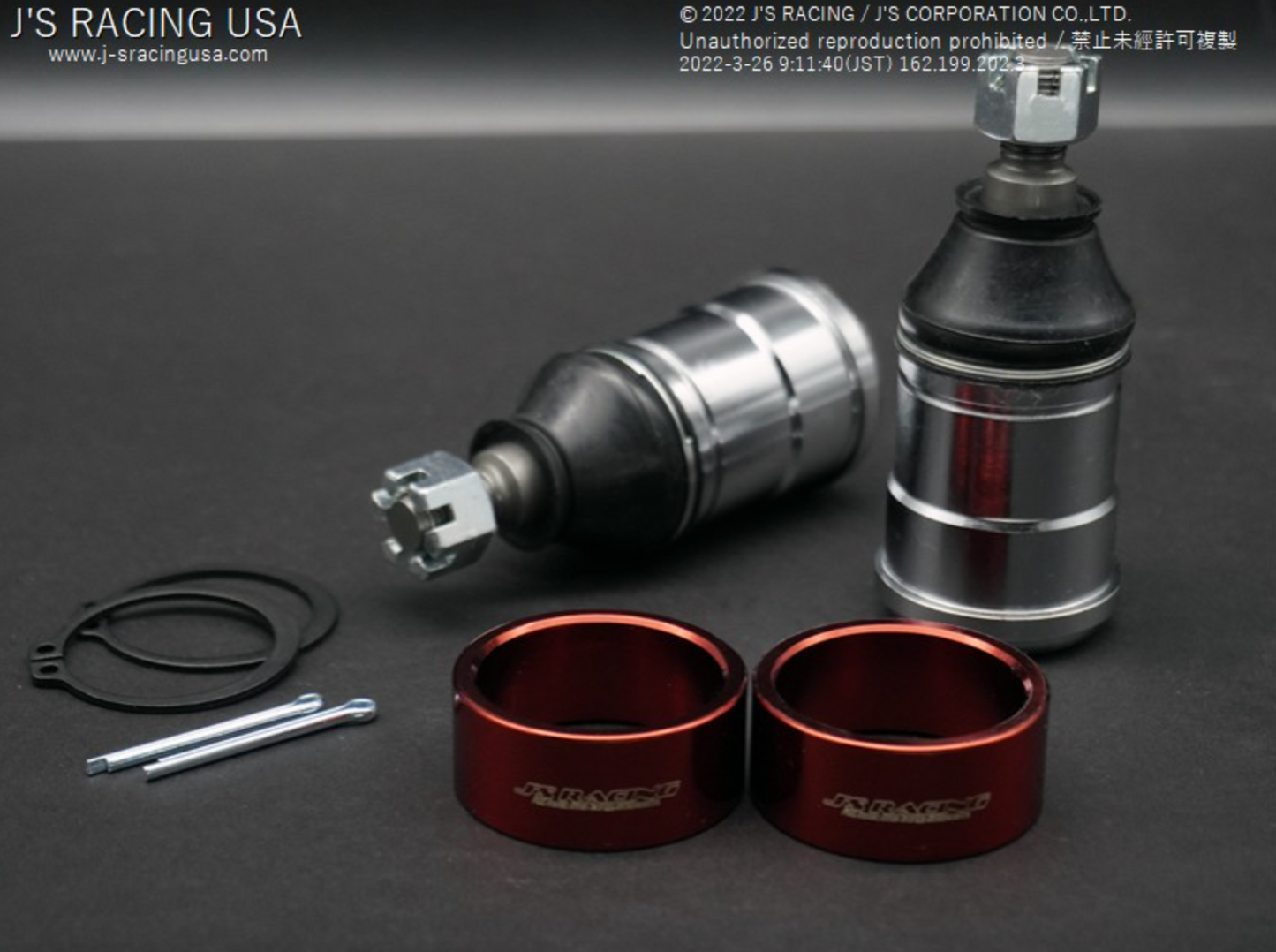

J'S RACING Rear roll center adjuster 20mm

Part Number: #RCJ-S1-20

Ball Joint  S45C

Ball Stud  SCM435HB195-260  Total Swing Angle 39°

The extension  20mm

 This is a special part to restore the ideal roll center geometry for S2000.

The lower arm angle of a lower ride height S2000 becomes separated “V” shape and the roll center point moves to a far low position. The deviation of the roll center from the center of the gravity results in a deteriorated cornering force due to the increased body roll.   Furthermore, the reduced suspension stroke leads to a diminished performance at the limit.

The J’s Racing roll center adjuster rectifies the situation by restoring the ideal roll center position (minimizing the deviation of the roll center and the center of the gravity) and produces the ideal suspension geometry.

【Ｒｅｓｕｌｔｓ】

It is very effective for any Fit whose ride height is reduced, especially with a sport suspension.

★　Reduced roll

★　Increased stability of the tires

★　Sharper steering response

★　Faster cornering

The product was born from the countless data and know-how gained from the actual racing activities.

It can be very effective on the street as well as on the race tracks.
